HERMEQ GermanyKD6 - 600/8 - Trench Sheet
Product Highlights
- 0.31 in. thickness - Built for demanding trench sheeting and excavation projects.
- 24 in. wide effective profile - Provides stable overlap and efficient coverage.
- U.S.-ready supply - In-house manufactured with fast delivery nationwide.
SKU TR1815
The KD6 trench sheet is a 0.31 in. thick, heavy-duty steel sheet pile designed for robust trench sheeting applications. Manufactured from S275JR steel with overlapping profiles, it’s ideal for deep trench sheets and structural retention. Built for U.S. contractors needing reliable sheet piles, this trench sheet offers long service life and precision manufacturing quality.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery

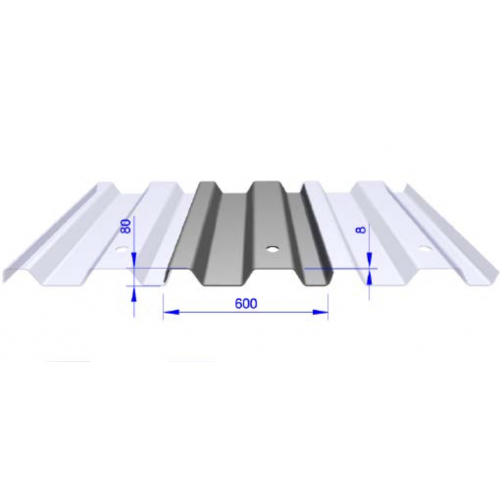

The KD6 (KKD 600/8) trench sheet is a flagship HERMEQ solution for trench sheeting where strength and durability are critical. Manufactured in-house using S275JR grade steel, this 0.31 in. thick, 24 in. wide steel sheet pile ensures full traceability and reliable performance under extreme site conditions. The overlapping KKD profile enhances stability and alignment during installation, making it a trusted option for infrastructure and civil engineering projects.
Each KD6 trench sheet is supplied with one 1.6 in. handling hole as standard, allowing for easy lifting and pitching using machinery. An additional hole can be supplied upon request. Built to endure heavy impact, this sheet pile is well-suited for deep trench works where trench sheets must resist ground movement and water ingress effectively.
- 0.31 in. thick S275JR steel - Maximum strength for deep excavation and secure trench sheeting.
- 24 in. effective width - Provides substantial ground coverage, improving efficiency during setup.
- In-house manufacturing - Ensures HERMEQ controls quality from raw material to finished product.
- One handling hole standard - Additional holes available upon request for safer site operations.
- 33.6 lb per ft - Easy calculation of total weight for transport and handling planning.
This trench sheet is perfect for deeper and more structurally demanding projects including basements, shaft shoring, pipeline containment and high-load excavation protection. It is frequently used on utilities and groundwork projects where steel sheet pile strength is non-negotiable.
With its robust construction and overlapping design, the KD6 offers a superior alternative to lighter gauge trench sheets. It allows for easier alignment and reduced trench collapse risk. Available in lengths from 13 ft to 39 ft, it accommodates variable trench sheeting needs on demanding sites.
HERMEQ stock a wide-range of Trench Sheets, Groundworks, Trench Covers & Road Plates conforming to all required U.S. safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
- Designed to be installed using an excavator bucket or approved piling equipment.
- Do not exceed safe stacking quantities—maximum 6 sheets staggered with timber spacers recommended.
- Additional handling holes can be supplied for safer installation in awkward terrain.
- Only use quick-release shackles where specified—extract using proper tools to avoid damage.
- Ideal for demanding environments including ports, basements, and highway trench reinforcement.
- Provides partial resistance to groundwater flow—verify site conditions before selection.
- HERMEQ’s KD6 is often paired with steel walings for maximum trench stability.
| Effective Width | 24 in. |
| Depth | 3.1 in. |
| Thickness | 0.31 in. |
| Steel grade | S275JR |
What makes the KD6 trench sheet different?
It features a 0.31 in. overlapping profile, offering superior strength compared to lighter trench sheets.
Can I request extra handling holes?
Yes. The KD6 is supplied with one hole as standard; additional holes can be added upon request.
What are common uses for the KD6?
Ideal for deep excavation, high-pressure shoring, and trench sheeting where load demands are high.
What is the sheet weight for planning logistics?
Each KD6 trench sheet weighs 33.6 lb per ft—multiply by required length for transport planning.
