Product Highlights
- 0.14 in. thick steel - Cold-rolled trench sheets made from durable S235JR material.
- 4–20 ft sizes - Supplied in multiple lengths for excavation, canal, and structural use.
- U.S. availability - Manufactured and supplied nationwide with full traceability.
SKU TR1500

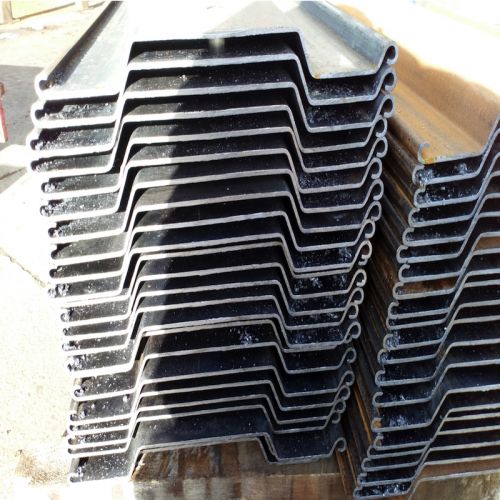

HERMEQ L8 trench sheeting is a 0.14 in. thick interlocking steel sheet pile designed for safe excavation support. Manufactured from S235JR steel, these trench sheets come in sizes from 4 ft to 20 ft with lifting holes for ease of use. Suitable for groundworks, excavation, and long-term soil retention, they deliver reliable performance in U.
S. construction projects requiring corrosion resistance and structural stability.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
L8 trench sheeting is a cold-rolled, interlocking steel sheet pile designed for excavation and shoring projects. These 0.14 in. thick trench sheets are supplied in lengths from 4 ft to 20 ft, enabling application in a wide range of civil and construction projects. Made from S235JR steel and produced in-house, the sheets provide excellent lateral support and water resistance with minimal ground disturbance.
The in-house manufacturing process begins with coil slitting, followed by roll forming into L8 profiles with pre-cut lifting holes for safe handling. The finished steel sheet piles are banded, stacked, and shipped to depots or job sites. HERMEQ ensures traceability, consistent supply, and dependable performance for sheet piles in the U.S. market.
- Range of lengths – Supplied in 4 ft to 20 ft formats to suit a variety of excavation or shoring applications.
- High strength construction – Cold-rolled from 0.14 in. S235JR steel for strong soil retention and edge interlocking.
- Fully interlocking edges – Provides better sealing and ground stabilization than overlapping trench sheets.
- U.S. supply – Full production control and fast delivery across the country.
- Versatile applications – Suitable for temporary or permanent retaining walls, marine use, and flood protection.
HERMEQ L8 trench sheets are ideal for canal banks, marinas, deep excavations, and infrastructure requiring robust lateral support. The trench sheet profile improves on-site efficiency and reduces labor compared to traditional shoring systems. Options for vibratory or hydraulic installation provide flexibility depending on soil composition and vibration sensitivity.
HERMEQ stock a wide range of Trench Sheets, Groundworks, Trench Covers & Road Plates conforming to all required U.S. safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Popular Uses:
• Shoring excavations and trenches
• Building temporary retaining walls
• Canal reinforcement and water bank edging
• Ground retention in infrastructure projects
Applications:
L8 trench sheets provide secure interlock and corrosion resistance, making them suitable for projects involving water ingress, flood prevention, or soil stabilization. Cold-rolled from precision steel and pre-punched with lifting holes, they’re a trusted solution for excavation lining and ground retention systems in the U.S. market.
| Effective Width | 17.1 in. |
| Depth | 1.5 in. |
| Thickness | 0.14 in. |
| Cross sectional area per sheet | 2.87 in² |
| Steel grade | S235JR |
What is trench sheeting used for?
Trench sheeting retains soil in excavations and prevents collapse in civil or marine works.
What lengths are L8 trench sheets available in?
Lengths range from 4 ft to 20 ft, with additional custom sizes available upon request.
Are L8 trench sheets suitable for water environments?
Yes. Their interlocking steel profile makes them ideal for canal walls, marinas, and flood defenses.
How are sheet piles installed?
They can be vibrated, hammered, or hydraulically pushed into position depending on ground conditions.
