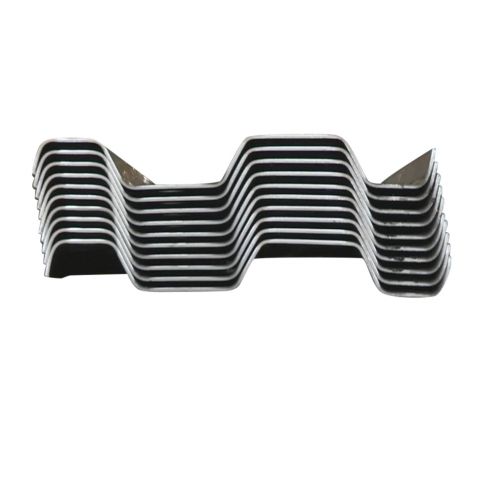

HERMEQ GermanyTrench Sheet - KKD 600/6
Product Highlights
- 0.24 in. steel thickness - Ideal for deeper trench sheeting and heavy-duty excavations.
- KKD overlapping profile - Provides maximum strength and trench stability on site.
- U.S. manufacturing - Full traceability and fast nationwide delivery via HERMEQ logistics.
SKU TR1505
S. construction, utilities, and civil engineering.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
The KKD 600/6 trench sheet is one of HERMEQ’s most widely used overlapping sheet piles, trusted for its strength and adaptability on-site. These 0.24 in. thick trench sheets are built to support excavation walls in deeper groundwork environments, providing reliable trench sheeting performance for heavy-duty applications. Their lap profile ensures a tight fit and improved trench wall support during digging or structural containment.
Manufactured from S275JR steel and produced in-house at HERMEQ’s facilities, these trench sheets combine premium material with quality control and traceability. Each KKD 600/6 sheet is 24 in. wide with an effective lap system that allows seamless installation. Whether for temporary shoring, drainage works, or large-scale civil engineering projects, this steel sheet pile delivers structural resilience and ease of handling.
- 24 in. wide with 3 in. depth - Compatible with most trench shoring systems and utilities applications.
- 25 lb per ft - Easy weight calculation for lifting, haulage, and handling on site.
- Supplied with 1.6 in. handling hole - Second hole available on request for safer trench sheet pitching.
- Popular with hire companies - Chosen for its long lifespan and ease of re-use across job sites.
- U.S. availability - HERMEQ network ensures fast trench sheeting delivery across the country.
These sheet piles are ideal for trench sheeting across a variety of infrastructure sectors, including water management, pipeline installations, and civil works. Each KKD trench sheet slots tightly with the next, minimizing soil displacement and lateral movement. For shoring contractors and site engineers, this sheet pile provides a balance of strength and site efficiency.
HERMEQ stock a wide range of Trench Sheets, Groundworks, Trench Covers & Road Plates conforming to all required U.S. safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
- KKD 600/6 trench sheets overlap to create a secure, continuous trench wall.
- Best suited for deeper excavations requiring stronger sheeting than thinner variants.
- Stack in bundles of six with timber spacers for safe handling and transport.
- Only install using appropriate machinery with approved driving and extraction equipment.
- Provides protection against trench collapse, soil displacement, and partial water ingress.
- Widely used by contractors due to its durability, repeat usability, and compatibility.
- Manufactured under HERMEQ quality control for consistent performance.
| Effective Width | 24 in. |
| Depth | 3 in. |
| Thickness | 0.24 in. |
| Steel grade | S275JR |
What is the main application of KKD 600/6 trench sheets?
These trench sheets are used to shore up deeper excavations and prevent trench wall collapse.
Are KKD 600/6 sheets reusable?
Yes, with proper handling and extraction they can be reused on multiple sites safely.
Can HERMEQ supply additional handling holes?
Yes, second handling holes can be added on request for better site safety and flexibility.
What steel is used for these trench sheets?
KKD 600/6 trench sheets are made from high-grade S275JR steel for durability and strength.
