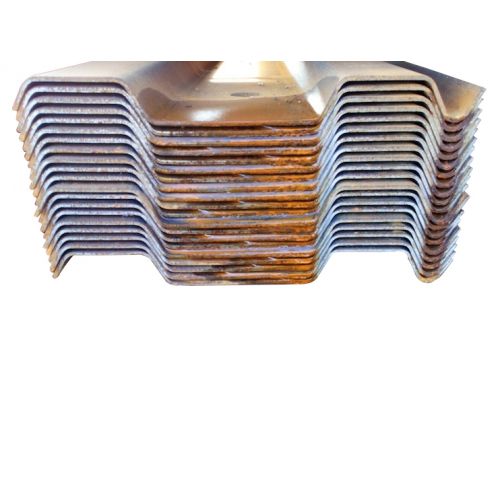

HERMEQ GermanyTrench Sheet - Standard Lap
Product Highlights
- 13 in. wide overlap - Cold-rolled steel trench sheeting for temporary ground support.
- 3.3 ft–19.7 ft lengths - Flexible sizing with standard lifting holes for safe handling.
- U.S.-ready supply - Reliable availability with full traceability.
SKU TR1495
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
HERMEQ’s standard lap trench sheeting is a cost-effective solution for temporary excavation works, civil engineering and groundwork shoring. Made from durable 0.14 in. S275JR steel, each trench sheet is cold-rolled and cut to precision using HERMEQ’s in-house production facilities. With an effective width of 13 in. and overlap design, these sheet piles are ideal for trench stabilization. These trench sheets are supplied in lengths from 3.3 ft to 19.7 ft, and include standard lifting holes for easier handling and placement using site excavators. Designed for temporary soil retention and ground support, the standard lap profile ensures a reliable barrier against collapse during trenching operations.
- 3.3 ft–19.7 ft lengths – Supports a wide range of shallow or deep excavation applications.
- S275JR steel – High-yield, cold-rolled construction for added strength and durability.
- Overlapping design – Enhances trench wall stability without interlocking mechanisms.
- In-house manufacture – Full production control and traceability from steel coil to final product.
- Fall protection compatible – Can be paired with HERMEQ’s fall prevention systems for added safety.
The overlapping profile is ideal where rapid deployment and structural support are needed. Sheets are packed and banded to spec, and delivered through HERMEQ’s supply network.
HERMEQ stock a wide-range of Trench Sheets, Groundworks, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
• Excavation and trenching in civil works
• Utility pipe installations
• Temporary retaining structures
• Perimeter shoring for infrastructure projects
Applications:
HERMEQ trench sheets are widely adopted across U.S. building sites for temporary works. Their overlapping lap design simplifies installation while maintaining strong edge-to-edge support. Cold-rolled from S275JR steel and pre-punched with handling holes, these trench sheeting systems ensure durability and ease of use on even the busiest sites.
Ideal for protecting workers from trench collapse, these sheet piles can be installed with a bucket, vibrated into place or hydraulically driven depending on site conditions. Quick turnarounds and custom sizing are available if needed, while HERMEQ’s fall prevention systems offer additional safety measures where required.
| Effective Width | 13 in. |
| Depth | 1.36 in. |
| Thickness | 0.14 in. |
| Weight | 7.6 lb per ft |
| Tolerance | +/- 5% |
| Cross sectional area per sheet | 2.3 in² |
| Steel grade | S275JR |
What are standard lap trench sheets used for?
They’re used to stabilize trench walls during excavation, utility work, and groundworks on U.S. construction sites.
What sizes are available?
Standard lap trench sheets are available in 3.3 ft to 19.7 ft lengths. Custom sizes may be available on request.
Can these be reused?
Yes. Trench sheets are reusable and can be removed post-project using appropriate extraction equipment.
Are they compatible with fall protection?
Yes. These trench sheets are compatible with HERMEQ fall prevention systems to enhance on-site safety.
