HERMEQ GermanySheet Piles - FKD 400/6 - KD4
Product Highlights
- 0.24 in. steel thickness – Heavy-duty overlapping trench sheeting for deep excavations.
- 16 in. effective width – Faster coverage with fewer piles required.
- U.S. ready – Delivered nationwide with full quality traceability.
SKU TR1508

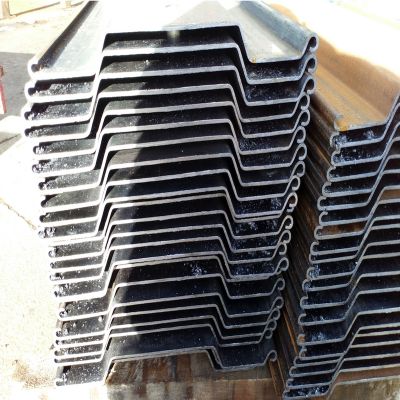

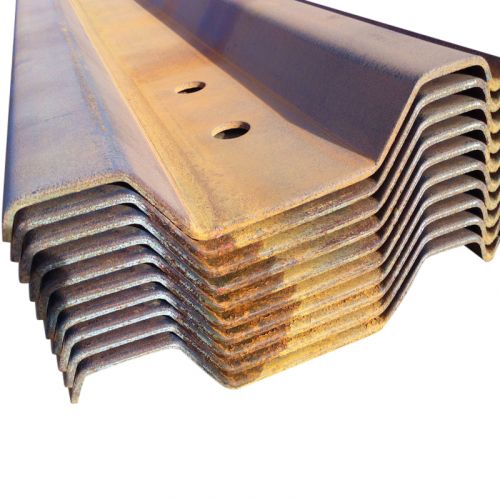

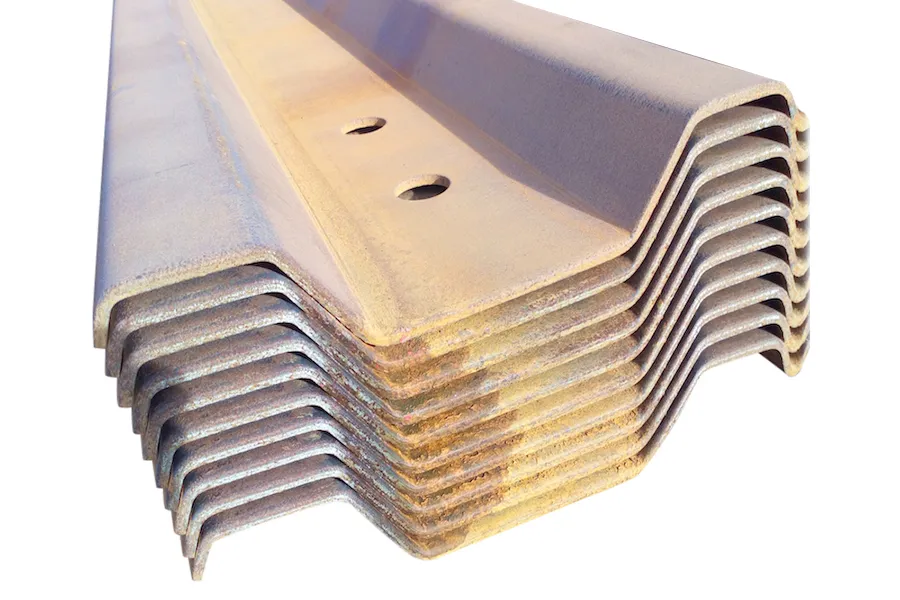

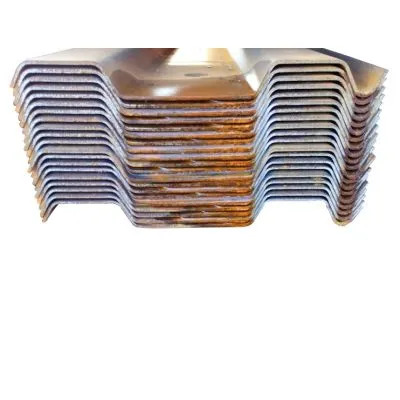

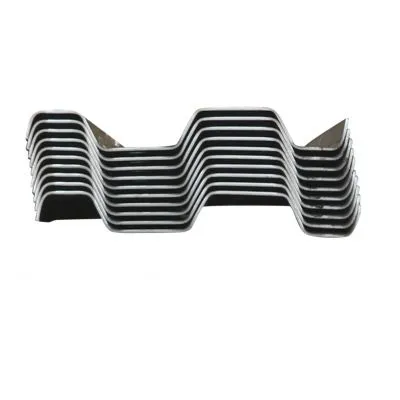

HERMEQ FKD 400/6 trench sheeting is a durable overlapping steel sheet pile designed for heavy-duty excavation and ground retention. Manufactured from S275JR steel, these trench sheets are available in 8 ft to 20 ft lengths with a 0.24 in. thickness. The overlapping profile minimizes soil displacement and groundwater ingress, making them ideal for safe excavation support on U.
S. construction sites.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
HERMEQ FKD 400/6 trench sheeting provides dependable ground support in excavation, foundation, and infrastructure works. Built with overlapping edges and 0.24 in. thick S275JR steel, this sheet pile delivers strength, stability, and resistance to deformation in demanding conditions. It is suited for both temporary and permanent soil retention applications.
These sheet piles are supplied in lengths from 8 ft to 20 ft, offering flexibility for shallow utility works through to deep excavation shoring. Their 16 in. effective width reduces the number of piles required for perimeter coverage, improving productivity and minimizing handling time.
- Heavy-duty support – 0.24 in. steel thickness ensures stability in challenging excavation environments.
- 16 in. effective width – Fewer piles needed per run, reducing labor and installation time.
- Overlapping profile – Enhances soil retention and limits groundwater seepage.
- Flexible installation – Compatible with vibratory, impact, and hydraulic press-in methods.
- U.S. supply – Fast delivery and full traceability through HERMEQ’s distribution network.
FKD 400/6 trench sheets are widely used for retaining soil walls, limiting collapse risk, and stabilizing worksites. They integrate into multi-level trench systems or can serve as standalone earth retention. Their overlapping profile and rigid geometry ensure uniform trench faces and reliable ground control.
HERMEQ stock a wide range of Trench Sheets, Groundworks, Trench Covers & Road Plates conforming to all required U.S. safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
FKD 400/6 trench sheeting is trusted by contractors for demanding excavation and shoring applications. Its overlapping profile ensures consistent wall support, reduces soil displacement, and limits groundwater seepage. The profile is engineered for repeat use, providing long service life across multiple sites.
Applications include:
- Deep excavation shoring
- Utility trenching
- Flood defense and water management
- Infrastructure reinforcement
Standard sizes range from 8 ft to 20 ft in length, with a 0.24 in. thickness for reliable performance. Each pile is manufactured from S275JR steel, cold-rolled for consistency and precision. The 16 in. effective width allows contractors to complete perimeter walls faster, reducing handling time and labor costs.
Units can be driven using vibratory hammers, pressed hydraulically in sensitive areas, or hammered into dense soils. Their versatility makes them suitable for a variety of job sites where ground stability and worker safety are priorities.

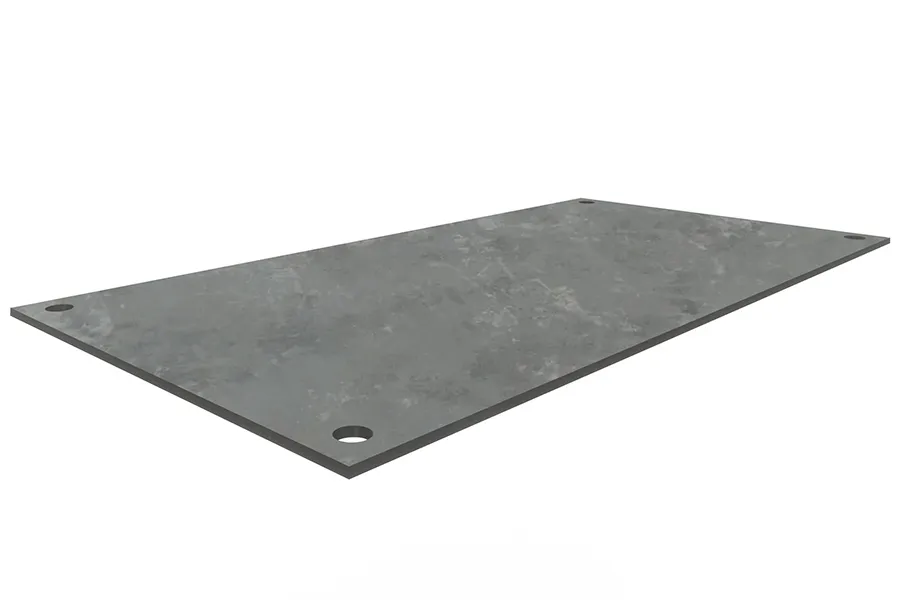

HERMEQ’s U.S. supply chain ensures rapid availability nationwide, supported by full technical data and traceability. Combine FKD 400/6 trench sheets with HERMEQ trench covers, steel road plates, and other safety solutions for a complete excavation support system.
| Effective Width | 16 in. |
| Depth | 2 in. |
| Thickness | 0.24 in. |
| Cross sectional area per sheet | 3.07 in² |
| Steel grade | S275JR |
What are FKD 400/6 trench sheets used for?
They are used to retain soil walls in excavations and prevent collapse in groundworks, utilities, and civil projects.
What lengths are available?
Standard supply ranges from 8 ft to 20 ft. Custom sizes may be available on request.
How are they installed?
They can be vibrated, hammered, or hydraulically pressed into place depending on site conditions.
What is the steel grade?
FKD 400/6 trench sheets are manufactured from S275JR structural-grade steel for durability and strength.
