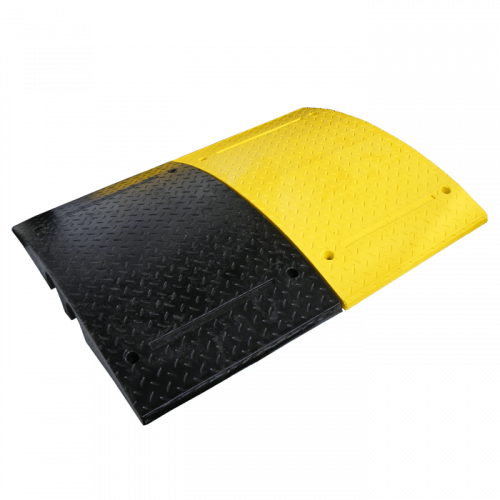

HERMEQ GermanyCable & Hose Cover Ramp
Product Highlights
- 66,000+ lb capacity – For U.S. jobsite vehicle traffic
- Bolt-down ready – Four secure mounting holes
- Large-diameter cable cover – 4 in tall clearance
SKU RC2193
Heavy-duty cable & hose ramp for U.S. job sites and events. Covers large-diameter services. Supports heavy traffic and plant equipment. 31 in × 19.5 in × 4 in (790 × 500 × 100 mm). Withstands over 66,000 lb loads. Bolt-down ready. Industrial PVC. Modular and reusable.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
HERMEQ’s Cable & Hose Cover Ramp is a U.S.-ready solution for protecting live hoses, power lines, and cable bundles at construction, logistics, and event sites. Each 31 in × 19.5 in (790 × 500 mm) section includes four bolt holes and supports over 66,000 lb (30 ton) loads.
The 4 in (100 mm) height accommodates thick service lines while allowing safe cross-traffic by industrial vehicles. The modular format lets teams lay out custom coverage zones—ideal for temporary or permanent site installations.
- Size: 31 in × 19.5 in × 4 in (790 × 500 × 100 mm)
- Material: High-compression industrial PVC
- Weight: 56 lb (25.5 kg) per section
- Fixing: 4 bolt-down points for stable installation
- Load capacity: Withstands 66,000+ lb (30+ tons)
Trusted by U.S. utility contractors, job site managers, and event planners. Reduces trip hazards, protects critical cables, and improves access zone compliance.
Pairs with HERMEQ Steel Road Plates, Access Mats, and Traffic Management Systems.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Commonly used across the U.S. in:
- Construction and industrial work zones
- Temporary event routes
- Logistics and warehouse cable crossings
- Utility trench and hydraulic hose protection
Built for repeated use with minimal wear. Provides a clean, stable, and OSHA-aligned solution to cable safety and trip prevention on U.S. job sites.
- Length: 19.5 in (500 mm)
- Width: 31 in (790 mm)
- Height: 4 in (100 mm)
- Weight: 56 lb (25.5 kg)
- Fixings: 4 bolt holes per section
- Material: High-compression PVC
- Capacity: 66,000+ lb (30+ tons)
How much weight can it hold?
Over 66,000 lb (30 tons) per unit—designed for plant, forklifts, and delivery vehicles.
Can I anchor it?
Yes – includes 4 bolt holes per section for secure positioning.
Is it modular?
Yes – sections can be linked end-to-end for full coverage.
What material is it made of?
High-strength industrial-grade PVC.
