HERMEQ GermanyPlastic Trench Cover
Product Highlights
- 880 lb load rated – With internal steel reinforcement
- Anti-slip surface – Safer footpath use in wet or dusty zones
- Bolt-down ready – For secure semi-permanent U.S. installs
Alternative Products
SKU RC0616

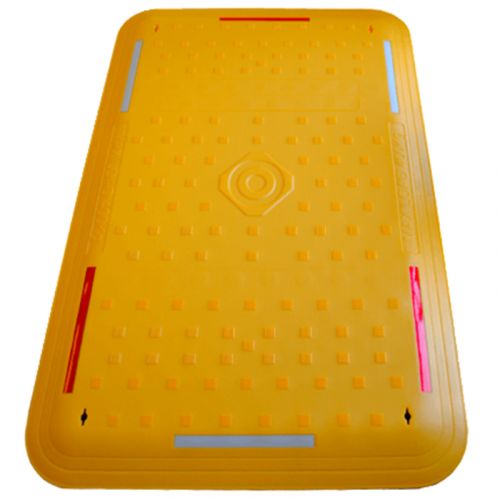

48 in x 31.5 in (1200 × 800 mm) plastic trench cover with steel core. Handles 880 lb loads. Yellow anti-slip surface with beveled edges. Bolt-down option. Lightweight, durable, 100% recyclable. Built for U.S. utility works, footpaths, and job sites.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
HERMEQ’s Plastic Trench Cover is a U.S.-ready pedestrian trench board made from impact-resistant HDPE with embedded steel reinforcement. It spans trenches and ducting channels up to 48 in (1200 mm) long and handles up to 880 lb (400 kg) of foot traffic, making it ideal for public right-of-way protection during civil works and utility jobs.
The anti-slip surface and beveled anti-trip edges ensure safety on U.S. footpaths and job sites. Built-in handles allow one-person lift (just 37 lb), and the 4 integrated bolt holes allow semi-permanent anchoring to asphalt or concrete. Bright yellow finish improves visibility during day or night.
- Load capacity: 880 lb (400 kg) pedestrian use
- Material: HDPE with steel core – strong, non-shattering, fully recyclable
- Size: 48 in × 31.5 in × 1.6 in (1200 × 800 × 40 mm)
- Weight: 37 lb (17 kg) – single-person carry
- Fixings: 4 pre-drilled corner holes for bolt-down installation
Commonly used by U.S. utility contractors, telecom crews, and local municipalities. Meets safety expectations for temporary public access over open service trenches. Reflective tape kits optional for nighttime use. Stackable and reusable.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Deployed across the U.S. in:
- Utility works and ducting access
- Pedestrian trench zones and sidewalk cuts
- Municipal maintenance and temporary access
HERMEQ’s plastic trench cover supports single-worker deployment, public safety, and fast response operations. Fully recyclable and OSHA-aligned.
- Length: 48 in (1200 mm)
- Width: 31.5 in (800 mm)
- Height: 1.6 in (40 mm)
- Weight: 37 lb (17 kg)
- Material: High-density polyethylene + steel reinforcement
- Fixing points: 4 corners – bolt-down capable
- Color: Yellow – optional custom color (bulk orders)
What load can it handle?
Up to 880 lb (400 kg) – suitable for pedestrian zones.
Can it be used on sidewalks?
Yes – it’s designed for public footpaths and trench bridging.
Does it need to be anchored?
Only in longer-term installs. 4 bolt holes are provided.
Is it reusable?
Yes – strong HDPE with internal steel core makes it highly durable and reusable.
