HERMEQ GermanyCable Guard Ramps
Product Highlights
- 3 or 5 channels - Choose the right cable cover ramp configuration for your job.
- High axle capacity - 13,228 to 26,456 lb rating depending on model, safe for road use.
- Rubber & PVC build - Non-slip surface with bright yellow flap for visibility and durability.
SKU RC2629
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery

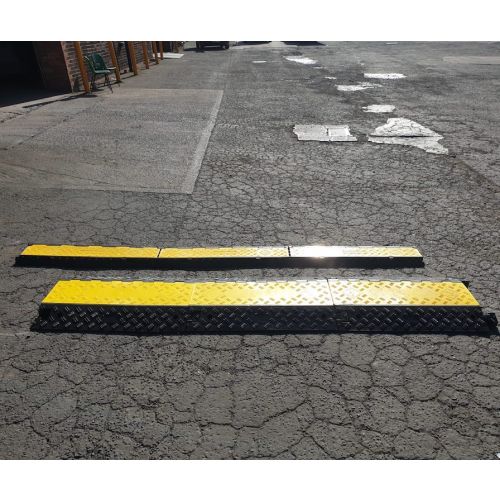

Designed for high-traffic road applications, these cable cover ramps offer safe and efficient cable protection with either 3 or 5 channels. They’re ideal for construction zones, live events, warehousing, and logistics depots where vehicle or foot traffic crosses over surface-laid lines.
The interlocking male and female ends enable fast installation, while the bright yellow PVC lid improves visibility and reduces slip risks. Each ramp is reinforced with a heavy-duty rubber base for maximum load tolerance. Optional securing holes allow bolt-down placement on hard surfaces for extra stability.
- 3 or 5 channels - Choose the right cable cover ramp configuration for your job.
- High axle capacity - 13,228 to 26,456 lb rating depending on model, safe for road use.
- Rubber & PVC build - Non-slip surface with bright yellow flap for visibility and durability.
- Secure connection - Male/female ends create stable joints across extended distances.
- Vehicle and pedestrian safe - Tested under heavy truck traffic in demanding environments.
These ramps are frequently used in industrial yards, loading zones, event sites, and outdoor electrical installations. They help maintain safety compliance and cable integrity where routing options are limited. As a reliable alternative to trenching or ad-hoc shielding, HERMEQ’s cable guard ramp system combines flexibility, performance, and road readiness.
HERMEQ stocks a wide range of Ground Protection, Steel Road Plates, Vehicle Access Mats, and Foot Ramps & Trench Covers that meet all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Popular use cases
- Live events with temporary power distribution across walkways and drive lanes
- Logistics and construction sites protecting power, data, and fluid lines
- Roadworks requiring safe surface-mounted cable access for light and heavy vehicles
- Facility service corridors where trenching is not practical
Applications
These road-compatible cable protectors are trusted by contractors and operations teams needing to manage overhead-free cable routes. The high load capacity supports car and semi-truck traffic across compact or modular layouts. Whether covering stage feeds, construction tools, or telecom installations, the robust rubber base and secure lid mechanism provide a reliable barrier to impact and wear. Perfect for semi-permanent or portable applications requiring fast deployment and removal.
3 Channel:
Length: 39"
Width: 11.8"
Height: 1.77"
Weight: 18.7 lbs
Max Axle Weight: 13,228 lbs
Channel Size: 1.38" x 1.38"
5 Channel:
Length: 35"
Width: 23.2"
Height: 2.95"
Weight: 41.9 lbs
Max Axle Weight: 26,456 lbs
Channel Size: 2.36" x 1.57"
Material: Rubber base with PVC yellow lid
Connections: Male/Female ends with 4 securing holes
Can vehicles pass over the cable ramps?
Yes, depending on the ground type, they support up to 26,456 lbs per axle—safe for cars, vans, and semi-trucks.
What’s the difference between the 3 and 5 channel versions?
The 3-channel version is more compact and lighter; the 5-channel offers higher capacity and axle tolerance.
Do the ramps stay connected when placed in a row?
Yes, the male and female ends securely join to maintain alignment under traffic.
Are they suitable for permanent use?
They are designed for temporary or semi-permanent use and can be secured via pre-formed bolt holes.
