HERMEQ DACHRB22 Water Filled Crash Barrier - 1323 lb
Product Highlights
- Crash-tested to 50mph – TRL-certified RB22 water-filled barrier for impact safety on active US roads.
- 1323lbs when filled – Exceptional stability with 143-gallon capacity and 78mph wind resistance.
- Quick-fit interlocking system – Steel pin connections speed up barrier runs and alignments.
SKU HW3851
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery

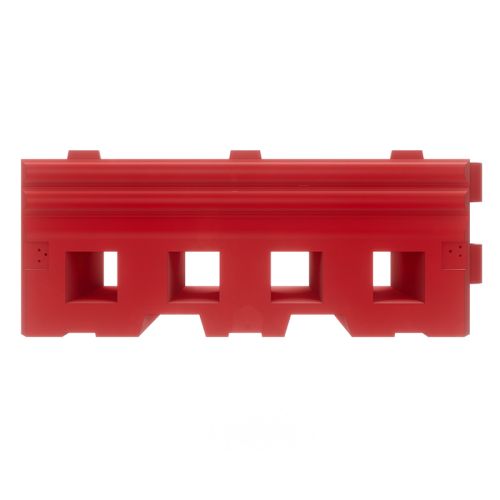

The HERMEQ RB22 Water Filled Crash Barrier offers certified impact protection for high-risk traffic management barriers and live infrastructure sites. Designed for crash zones and heavy-duty applications, this 1323lbs barrier withstands vehicle impacts up to 50mph and wind loads to 78mph—making it one of the most robust water-filled road barriers available.
Manufactured from UV-stabilized, recyclable polyethylene, each 7.2ft barrier unit interlocks using a steel pin system for secure, continuous alignment. Its 143-gallon capacity provides mass and momentum reduction in crash zones. Compatible mesh and hoarding fence kits increase height above 6.6ft, while cornering units allow for flexible layouts up to 90° turns.
- Certified crash safety – Independently TRL-tested to meet US highway barrier standards.
- Reduces secondary hazards – Water-filled core absorbs force and limits vehicle rebound.
- Built-in forklift channels – Easy movement on and off-site, even when filled.
- Extension-ready – Fixings supplied for mesh, hoarding, or clad fence panels.
- All-weather visibility – Supplied in red/white for maximum roadside contrast and compliance.
This crash-rated water-filled traffic barrier can be deployed with standard road barriers, traffic signage, and access control gates. HERMEQ also offers GB2 and RB2000 models for alternative sizes and site formats.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Crash Zones & Roadway Protection
RB22 barriers are frequently used in highway repair sites, active verge work, and road lane shifts. Their proven performance offers vital impact deflection and hazard containment.
Secure Layouts
The steel pin joinery enables straight and curved layouts with zero slippage. Use 90° corner sections to adapt to inner-city works, bends, or compound perimeters.
Barrier Handling
Each 132lbs unit is movable by two people when empty and includes integrated forklift guides for secure mechanical lifting. Water is added via 3.7in fill ports and drained via 1in valves.
Full System Compatibility
HERMEQ provides pedestrian and vehicle gates, fence extension kits, and signage solutions fully compatible with the RB22 crash barrier system.
- Length: 7.19ft
- Working Length: 6.56ft
- Height: 31.5in
- Width: 19.7in
- Weight (Empty): 132lbs
- Weight (Filled): 1323lbs
- Water Capacity: 143 gallons
- Max Wind Speed: 78mph
- Crash Rating: 50mph (certified)
- Forklift Access: 2 x 11.8in x 3.3in
- Fill/Drain Holes: 3.7in / 1in
- Cornering Angle: 90° with angle sections
- Color: Red/White
- Material: UV-stabilized recyclable polyethylene
Is the RB22 barrier crash tested?
Yes. It is TRL-certified to absorb and deflect vehicle impact up to 50mph, offering critical protection in active road zones.
Can the RB22 be used with fences or gates?
Yes. Fence and hoarding extensions, as well as pedestrian and vehicle gate kits, are fully compatible and install easily using included fixings.
How stable is the barrier in wind?
When filled, the 1323lbs RB22 withstands wind speeds up to 78mph, making it suitable for exposed highway and infrastructure locations.
What is the benefit of steel pin connection?
The locking pin ensures continuous, secure alignment without shifting—essential for both safety compliance and wind performance.
