HERMEQ DACHEcho Barrier Acoustic Screen
Product Highlights
- 38.5dB noise reduction – Portable barrier with 97% absorption
- Folds & rolls – Easy to deploy, move, and store
- All-weather & fire-rated – Works from -40°F to 158°F
SKU AB113010

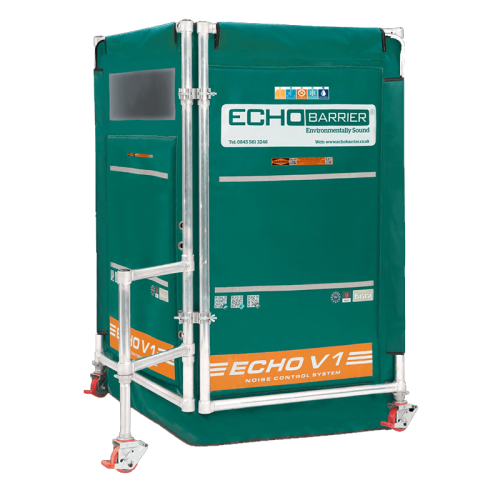

A foldable, mobile acoustic barrier designed for industrial-grade noise control. Reduces up to 38.5dB and absorbs 97% of sound. Durable and portable, with a wheeled frame for easy relocation. Rated for use in extreme U.S. site conditions from -40°F to 158°F. Ideal for demolition, construction, and utility noise management.
The Echo Barrier Acoustic Screen delivers reliable portable noise control for construction, demolition, and utility work. Built to reduce noise by up to 38.5dB and absorb 97% of airborne sound, it offers the mobility traditional acoustic fencing can’t match.
Its three-layer panel includes a weatherproof PVC shell, a dense acoustic core, and a breathable waterproof membrane. Mounted on a foldable, wheeled frame, it moves easily between job zones. The compact folding design makes it ideal for storage and transport without sacrificing acoustic performance.
- High noise attenuation – Reduces sound by 38.5dB, with 97% absorption in lab tests
- Mobile folding frame – Rolls easily between site zones; folds flat for storage
- Weatherproof & tough – IPX6/9 water-resistant, dust-proof, UV-rated for 5 years
- Fire safe & cold resistant – Tested to ASTM and BS fire standards and cold-rated to -40°F
- Tool-free setup – Easy deployment by one worker with no special fixings
Whether shielding noisy tools, generators, or machinery, this mobile acoustic screen helps reduce public complaints and supports compliance on sensitive projects. Used in sidewalk cutting, interior renovations, utility repair hubs, and short-term demo zones.
HERMEQ offers a wide range of Crowd Control Barriers, Traffic Barriers, Rope Barriers, and Expandable Barriers that meet all U.S. worksite compliance standards.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
This folding acoustic screen is built for U.S. contractors who need mobile noise protection on dynamic or short-term sites. It meets key standards for fire safety, water/dust resistance, UV durability, and cold exposure.
- Sound Reduction: 38.5dB
- Absorption: 97%
- Rated: IPX6/IPX9 (Water), ASTM E84 (Fire), BSEN 60529 (Dust), -40°F (Cold)
Folded Size: 72.4 x 48.8 x 5.9 in
Total Weight (with wheels/feet): ~66 lbs
Ideal for shielding equipment or tasks in public-facing areas. When paired with other HERMEQ barriers, it helps form a fully compliant, noise-safe work perimeter anywhere in the U.S.
| Height | Width | Thickness | Weight |
| Barrier: 76.4 in Frame w/ wheels: 82.7 in Frame w/o wheels: 76 in | 100.8 in | 2.36 in | Barrier: 22 lbs Frame: 37.5 lbs Wheels: 4.4 lbs | Feet: 2.2 lbs |
| Folded Dimensions | 72.4 x 48.8 x 5.9 in (L x W x D) |
| Max Noise Reduction | 38.5dB |
| Max Noise Absorption | 97% |
| Water Resistant Standard | BSEN 60529:1992 IPX6 / IPX9 |
| Fire Resistant Standard | BS 7837-1996 / ASTM E84 |
| Dust Resistant Standard | BSEN 60529:1992 |
| Cold Resistance | Rated to -40°F |
| UV Resistance | 5-Year Rated |
How much noise does it reduce?
Lab-tested to reduce up to 38.5dB and absorb 97% of airborne noise.
Can it be used outdoors?
Yes, it is IPX6/9 waterproof, UV stable, cold-rated to -40°F, and fire-rated to BS 7837 and ASTM E84.
Is it easy to move?
Yes, it folds flat, rolls on wheels, and sets up quickly without tools.
Where should it be used?
Anywhere mobile noise suppression is needed—roadwork, site tools, generators, or temporary worksites.
