HERMEQ GermanyU Piles - ThyssenKrupp
Product Highlights
- Steel U-pile sheeting – High-strength, Larssen-type for excavation and shoreline protection.
- Fast install & reusable – Ideal for temporary or permanent support in U.S. groundworks.
- OSHA-ready supply – Available cut-to-length with slinging holes and site prep.
Alternative Products
SKU UP1794
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery

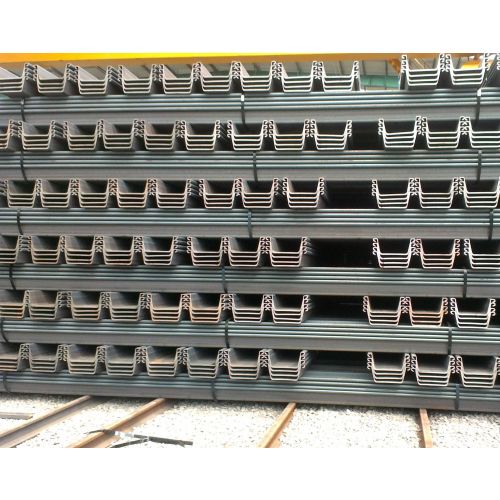

HERMEQ’s ThyssenKrupp U Piles are engineered for strength, adaptability, and fast site installation—making them the go-to trench sheeting system for American infrastructure projects. These U-shaped steel sheet piles use Larssen interlocks to form tight, high-load bearing walls with excellent water resistance in deep excavations or marine applications.
Designed for trench retention, pit shoring, and shoreline construction, the U-pile profile maximizes rigidity while allowing continuous wall formation. These hot-rolled steel trench sheets are available in multiple grades—including S270GP to S390GP—for performance under hydraulic and lateral pressure in critical support roles.
- Heavy-duty trench sheeting – U-pile geometry delivers high strength-to-weight ratio and bending resistance.
- Engineered for versatility – Ideal for cofferdams, bridge abutments, ports, and flood control zones.
- Larssen-type interlocks – Watertight and secure jointing system ensures structural stability.
- Cut-to-length available – Delivered with pre-cut sling holes for fast on-site handling.
- Full profile range – Available in models L601 through L607 to meet design load demands.
These sheet piles integrate easily into straight runs, curved layouts, or corner transitions. The steel profile can also be upgraded with sealants, bracing, or beam reinforcement. Reusable and tough, they offer both temporary and permanent retaining performance, helping reduce excavation collapse risk and water ingress.
HERMEQ U Piles are also compatible with U.S. structural accessories including tie rods, walers, H-beams, and support tubes. Whether for road expansion, water retention, or coastal works, this trench system streamlines engineering, boosts site safety, and lowers total install time.
HERMEQ stocks a full range of Trench Sheets, Groundworks, Trench Covers, and Road Plates built for U.S. standards.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
- Profile Range: L601–L607 with structural ratings for site planning and design engineering
- Installation Ready: Pre-cut slinging holes simplify crane handling and site prep
- Steel Grades: S270GP to S390GP for tailored resistance against ground loads and water ingress
- Compatible Accessories: Walers, tie rods, beams, rebar, and sealants for system integration
HERMEQ U Piles are trusted for retaining soil, deflecting groundwater, and resisting load across U.S. infrastructure jobs. They form a critical barrier in trench excavations and marine works. Designed for reusability and rapid install, these sheet piles help reduce collapse risk and keep worksites OSHA-compliant. Whether for deep foundations, flood control, or bridge footings—U Piles get the job done right.
| Profile | B (mm) | H (mm) | T (mm) | S (mm) | Weight (kg/m) | Inertia (cm⁴/m) | Elastic Modulus (cm²/m) | Plastic Modulus (cm³/m) |
|---|---|---|---|---|---|---|---|---|
| L601 | 600 | 310 | 7.5 | 6.4 | 46.8 | 11530 | 745 | 836 |
| L602 | 600 | 310 | 8.2 | 8.0 | 53.4 | 12870 | 830 | 964 |
| L603 | 600 | 310 | 9.7 | 8.2 | 64.8 | 18600 | 1200 | 1300 |
| L604 | 600 | 380 | 10.0 | 9.0 | 73.8 | 30400 | 1600 | 1862 |
| L605 | 600 | 420 | 12.5 | 9.0 | 83.5 | 42420 | 2020 | 2340 |
| L606 | 600 | 435 | 14.4 | 9.2 | 94.2 | 54375 | 2500 | 2820 |
| L607 | 600 | 452 | 19.0 | 10.6 | 114.0 | 72320 | 3200 | 3620 |
What are U Piles used for?
They provide shoring and retention in excavation support, marine piling, flood protection, and trench stabilization projects.
Can these sheet piles be reused?
Yes, U Piles are commonly reused in temporary works thanks to their strength and resistance to deformation.
Do HERMEQ U Piles meet U.S. safety standards?
Yes. All trench sheeting profiles conform to structural and OSHA requirements for construction and infrastructure.
What delivery options are available?
HERMEQ stocks most profiles and offers quick U.S. delivery with custom-cut lengths and slinging hole prep.
