HERMEQ GermanyTemporary Vertical Concrete Barriers (TVCBs) - V28
Product Highlights
- Crash tested – Offering a high level of protection on roads and construction sites.
- Heavy duty – Weighing 5,512 lbs, they provide a sturdy and durable barrier solution.
- Meets EN1317 standards – High-strength precast concrete (7250 psi) & Highway-specified steel reinforcement
Alternative Products
SKU CB151985

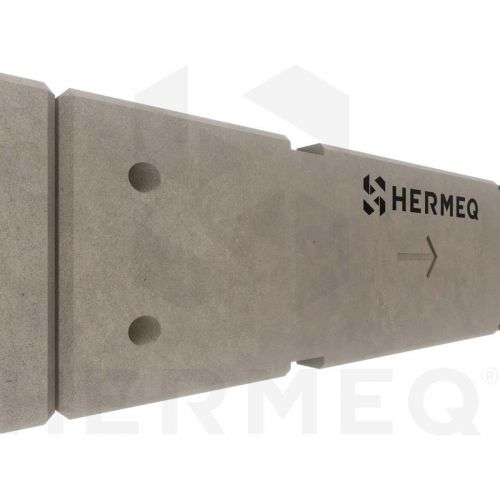

A crash-tested concrete safety & security barrier – 10 ft x 18 in x 31 in – 5,512 lbs. Our TVCB barriers are widely used both on roadways & construction sites for safely managing traffic & separating cars from pedestrians.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
These concrete crash-tested barriers, Temporary Vertical Concrete Barriers (TVCBs), are manufactured in the US & HERMEQ can deliver nationwide. We also offer a range of additional features, including painting the TVCBs to suit your needs, supplying fixing kits & on-ground vehicle and pedestrian gates that are specially designed to fix directly to the concrete barriers.
TVCBs are ideal for creating safe working areas for your workforce & preventing unauthorized access to private land. They are also used as traffic barriers & to help direct traffic flow, as they are crash tested. TVCB Bolts are available to order as well – you will require 2 bolts per joint. For example, 3 TVCBs would have 2 joints requiring bolts, which would require 4 bolts in total.
Cast from a highly respected high-strength concrete and combined with Federal Highway specification steel reinforcing. This means the barriers meet the component requirements of EN 1317, 'Compliant Road Restraint Systems for Temporary Safety Barriers'.
Please note: These barriers are only crash tested if connected with bolts and installed by an approved technician.
We also offer on-ground vehicle gates which connect directly to the TVCB barriers using standard concrete fixings. See our full range of gates designed to work with TVCBs – TVCB Gates. These concrete safety barriers are connected together at the scarf joint by M24 high tensile bolts.
When placing an order, you must select whether you require a Lifting Clutch for offloading. HERMEQ offers a range of Offloading Accessories and Moffett delivery options to enable you to safely and easily offload purchases. Failure to ensure you have the offloading equipment required may result in delayed delivery and us being unable to offload your order.
If you have any questions about this, please speak to our sales team for more information.
HERMEQ stocks a wide range of Entrance Barriers, Traffic Management, Permanent Fencing & Temporary Fencing conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
These precast concrete barriers are manufactured using high-strength concrete (7250 psi). This is combined with Highway Agency-specified steel reinforcement to create EN1317 "Compliant Road Restraint Systems for Temporary Safety Barriers" *Please note these must be installed by a certified contractor to meet this standard.
Concrete safety & security barriers are also used as:
- Concrete vehicle security barriers
- Concrete vehicle containment barriers
- Hostile vehicle mitigation concrete barriers
Dimensions & Specifications
| Overall Length | 10.3 ft |
| Modular Length | 10 ft |
| Width | 18 in |
| Height | 31 in |
| Weight | 5,512 lbs |
| Containment Level | Test Vehicle | Test Speed | Angle | Test Deflection | Working Width |
| N1 | 3,300 lb Car | 50 mph | 20° | 14 in | W3 |
| N2 | 3,300 lb Car | 70 mph | 20° | 14 in | W3 |
