HERMEQ GermanySwing Arm Access Gate
Product Highlights
- Manual steel swing gate – 10 to 20 ft wide
- Powder-coated & weatherproof – Built for U.S. sites
- Locks open or closed – Secure access control
SKU PK2916

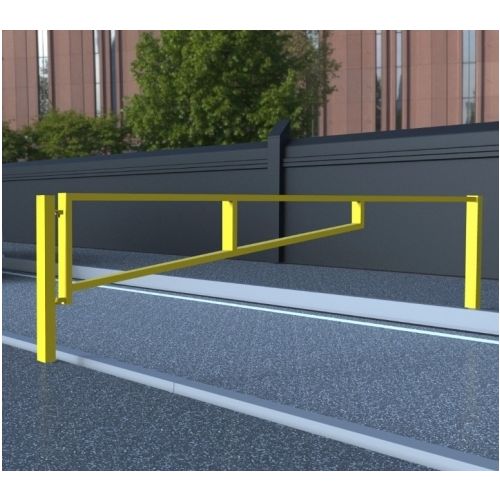

Manual swing arm barrier for low-traffic U.S. entrances and car parks. 10–20 ft span (3–6 m), steel construction, powder-coated, lockable in both open and closed positions. No power needed—ideal for rural roads, unmanned sites, and restricted access lanes.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
This HERMEQ manual swing barrier offers a cost-effective way to control vehicle access across American commercial and industrial properties. Built from durable box-section steel and powder-coated for weather resistance, it's designed for reliability in remote, low-traffic, or unmanned locations.
Available in lengths from 10 ft to 20 ft (3–6 meters), the swing gate includes a hinged post and optional latch post for locking. Lock open or closed with a padlock (not included). Install at the perimeter of car parks, rural roads, staff-only lots, or gated commercial entries.
- Gate span: 10 to 20 ft (3.0–6.0 m)
- Steel construction: Powder-coated box section frame
- Manual operation: No electrics required
- Dual locking: Secure open or closed with padlock/latch post
- Corrosion resistant: Weather-protected finish for outdoor U.S. use
HERMEQ’s gate works well with Permanent Fencing and Traffic Management Systems for complete vehicle access solutions in the U.S.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Trusted across the U.S. for simple access restriction at:
- Parking lots
- Service and utility roads
- Private commercial property
- Contractor staging zones
- Storage and fleet yards
Manual operation reduces cost, speeds install, and eliminates need for ongoing maintenance or electrical integration.
- Gate Frame: 60 x 60 Box Section
- Upright Posts: 100 x 100 (120 x 120 for 18–20 ft spans)
- Swing Arm Length: 10–20 ft (3–6 meters)
- Includes Hinged Post
- Powder Coated Steel Finish
- Optional Latch Post for Locking (open/closed)
What sizes are available?
Available in 10 ft to 20 ft spans (3–6 m) to match most site entrances.
Can it be locked?
Yes – padlock-ready latch post allows it to lock in either open or closed position.
Does it need power?
No – fully manual operation, ideal for remote U.S. locations or power-free zones.
Where is it typically used?
Car parks, utility yards, private driveways, and business access lanes.
