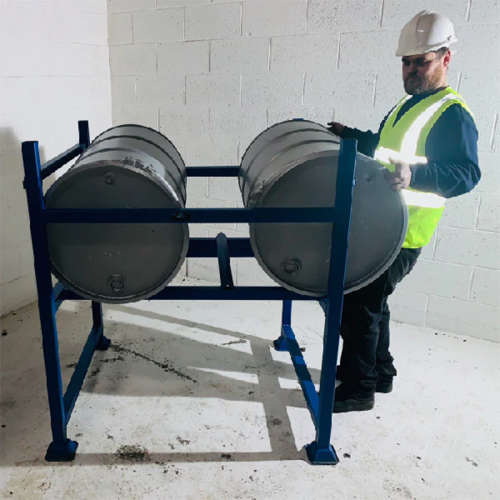

Stackable Drum Stillage/Rack

HERMEQ’s stackable drum stillage is a reinforced rack system for storing oil drums, barrels, or chemical containers in a horizontal position. Designed for warehouse, plant, or jobsite use, it provides elevated storage and protects drums from contact with the ground.

Each unit accommodates standard drums up to 24 in (610 mm) diameter and 31.9 in (810 mm) long. The tilted frame keeps contents stable while allowing easy loading and dispensing. Removable side braces secure the drums during movement or stacking.

• Max Load: 2200 lb (1000 kg) standard, or 1650 lb (750 kg) when fitted with standard casters
• Stackable: Features steel feet for stable vertical stacking
• Steel Thickness: 0.1 in (2.5 mm) steel body
• Dimensions: 53.1 in H x 47.2 in W x 40.9 in D
• Optional Add-ons: Forklift pockets and heavy-duty casters available
• Finish: Blue painted standard; galvanized and powder-coated options on request

Built for demanding storage applications in industrial, MEP, and construction environments where fluid or chemical drum containment is required. This unit is not suitable for crane lifting. Ideal for drum staging, warehouse rack systems, or remote equipment storage on U.S. job sites.

HERMEQ offers a full line of Building Equipment, Handling Attachments, Storage Products, and PPE meeting U.S. safety requirements and OSHA standards.
