HERMEQ GermanyRoof Truss Jib
Product Highlights
- 400 kg (880 lb) capacity – Light-duty truss lifts
- Quick mount system – Fast attachment and release
- Includes hook + shackle – Ready to lift
Alternative Products
SKU IA5622
Roof truss jib for lifting and placing roof trusses with telehandlers or forklifts. 880 lb (400 kg) capacity. Includes hook and shackle. Quick hitch mount. Bright orange safety finish. Made for US job sites.

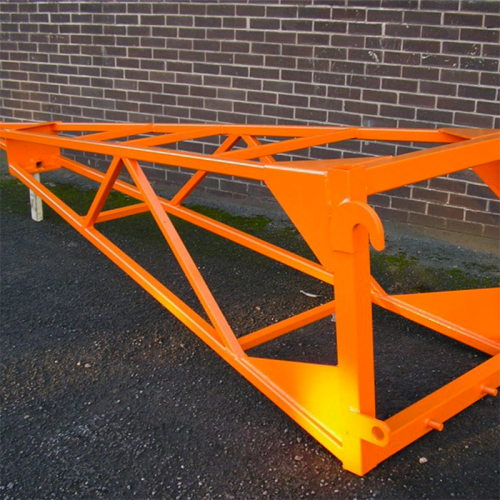

The HERMEQ Roof Truss Jib is designed to make roof truss placement faster and safer on US construction sites. This quick-hitch forklift or telehandler attachment provides elevated forward reach and full control when positioning roof trusses.
Key Features:
- Capacity: 880 lb (400 kg)
- Length: 157.5 in (4,000 mm)
- Height: 40.9 in (1,040 mm)
- Weight: 505 lb (229 kg)
- Center of gravity: 28.5 in (725 mm)
- Mounting: Quick hitch with hydraulic locking pins
- Finish: Bright orange powder coat for site safety
- Includes: Swivel hook + shackle
Usage Notes:
- Only use for vertical lifting — never angular or side pulling
- Inspect weekly for damage, wear, or rust
- Check fork pockets, weld points, latch, and shackle before each use
- Certifications valid for 6 months — reinspection required after
This truss jib simplifies installation of roof frameworks on timber or metal-framed structures. Commonly used by framing crews, roofing contractors, and residential builders. Designed to meet safety standards expected on US worksites. Extending models available upon request.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
- Load Capacity: 880 lb (400 kg)
- Center of Gravity: 28.5 in (725 mm)
- Length: 157.5 in (4,000 mm)
- Height: 40.9 in (1,040 mm)
- Weight: 505 lb (229 kg)
