HERMEQ GermanyMechanical Well Ring Lifter
Product Highlights
- Auto-grip clamps – No straps or slings
- Fits forklifts & HIABs – Built for US equipment
- 35–70 in ring range – For manholes or storm chambers
Alternative Products
SKU IA7952

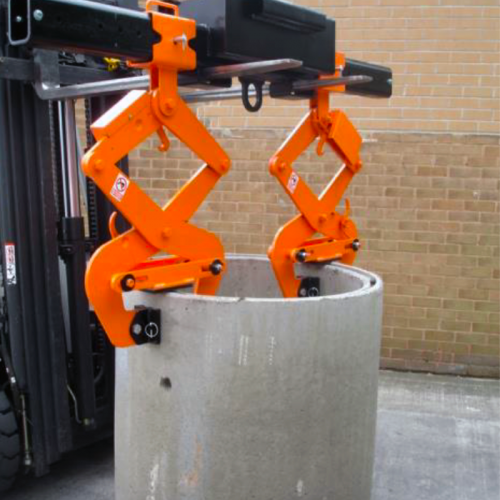

Forklift or HIAB-compatible mechanical well ring lifter. Lifts concrete rings from 35.4–70.9 in diameter. 4,400 lb (2,000 kg) capacity. Auto-grab jaws. Serrated pads for secure grip. OSHA-ready. Built for US utility and groundwork crews.
This HERMEQ Mechanical Well Ring Lifter is purpose-built for US construction, drainage, and utility crews handling large concrete rings. With self-gripping jaws, it's safer and faster than using slings or chains — making it ideal for sewer installs, manhole placement, and stormwater access setups.
- Ring range: 35.4–70.9 in (900–1,800 mm)
- Capacity: 4,400 lb (2,000 kg)
- Mounting: Forklift forks or HIAB lifting hook
- Auto-grab arms: Serrated pads lock onto ring rim
- Center of gravity: 35.4 in (900 mm)
- Weight: 441 lb (200 kg)
- Fork Size: Up to 4.9 x 2 in (125 x 50 mm)
- Finish: Bright orange powder coat for site visibility
Once the forks or crane hook lift vertically, the jaws clamp automatically to secure the ring. No manual input is needed during grab or release. A weekly inspection of contact pads, locking arms, and weld integrity is recommended. Six-month inspection certification recommended to align with OSHA-conscious operations.
Use with excavated manholes, precast chambers, or stormwater utilities. Compatible with US-sized forklifts and HIAB crane hooks. Optional stand available for safe ground storage.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
For civil engineering, sewer installs, and precast lifting. Certified for vertical use only. Do not use with angular or side loads. Store safely on stand or designated rack.
- Capacity: 4,400 lb (2,000 kg)
- Ring Range: 35.4–70.9 in (900–1,800 mm)
- Fork Size: Up to 4.9 x 2 in (125 x 50 mm)
- Center of Gravity: 35.4 in (900 mm)
- Weight: 441 lb (200 kg)
What ring sizes does it lift?
Concrete rings from 35.4 to 70.9 in diameter (900–1,800 mm).
Does it need chains or straps?
No — jaws auto-lock onto the ring rim for hands-free operation.
Is it compatible with US forklifts?
Yes — fits forks up to 4.9 x 2 in (125 x 50 mm).
Can it be used with a crane?
Yes — HIAB crane hook compatible for vertical lifting setups.
