Lightweight Trench Box

Name: Lightweight Trench Box
SKU: TR2121
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Alternative Products

SKU TR2121

Lightweight trench boxes are used in trench shoring as a form of trench ground support. They offer an affordable lightweight trench lining system. They are most commonly used for groundworks operations such as installing utility pipes where ground movement is not critical.

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Details

The size of the system required for your trench ground support depends on your maximum trench depth requirements and the size of the pipe sections you are installing in the ground. Our lightweight trench box system is generally most suitable for trench depths of up to 13.7ft and trench widths of around 12.1ft if used in conjunction without variable trench box struts.

All of our trench boxes come with strut pins to suit. As standard, our ground pins are 1.1in diameter round bar and 6.3in long, they have a shear SWL of 228kN and weigh approximately 2.2lb.

The lightweight trench box system is also incredibly easy to assemble and install. There are two main methods of installing the trench box in place: the first is to use the "dig and push" technique, the other simple approach is to simply dig out the excavation and then lower the lightweight trench box into place.

The lightweight nature of these trench boxes makes them perfect for smaller excavations and when your site equipment has a low lifting capacity, meaning you don’t have to rely on hiring expensive machinery to carry out your ground excavation works.

Our lightweight trench boxes are manufactured using high-quality steel. When it comes to safety, we don’t compromise on quality.

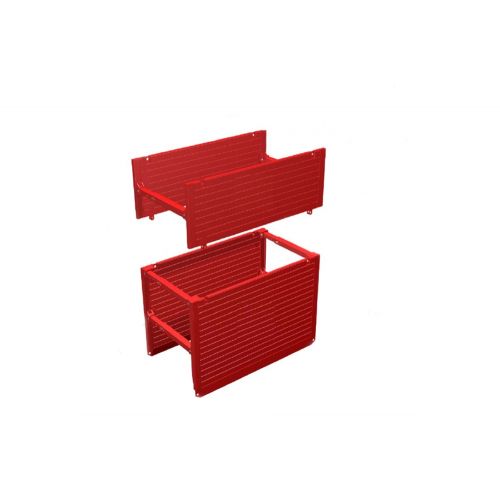

Trench Box Details

Name	Trench Box Base	Trench Box Extension Top
Size (L x H)	118in x 79in	118in x 43in
Max Depth** (ft)	13.7	N/A
Panel Resistance SWL (kN/ft²)	45	45
Panel Thick / Weight	2.4in / 959lb	2.4in / 705lb
Approx Assembled Weight	2138–2932lb	1521–1918lb
Internal Trench Width	23.8–142.7in	23.8–142.7in
Trench Width	28.5–147.4in	28.5–147.4in
Clearance Below Bottom Struts	35.6in	N/A

Telescopic Strut Details

Component	Strut Inner	Strut Outer
Specification	100x100x10 SHS	120x120x8 SHS
Specification	S355	S355
Axial SWL	228kN	228kN
Moment SWL	9.9kNm	9.9kNm
Hole Details	1.2in Holes	1.2in Holes
Unit Mass	18.4lb/ft	17.7lb/ft

HERMEQ stocks a wide range of Trench Sheets, Groundworks, Trench Covers & Road Plates conforming to all required safety specifications and regulations.

Need any help? Contact HERMEQ Today.
