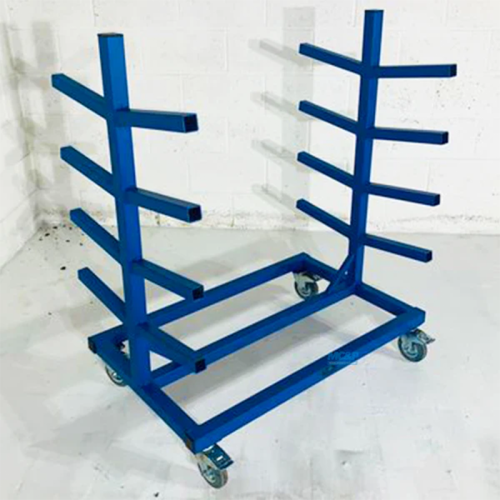

Heavy Duty Pipe Trolley

The Heavy Duty Pipe Trolley offers a dependable and efficient way to move pipes, rods, and tubing across American job sites and warehouses. With its dual-leg design and eight lateral support arms (four pairs per side), it’s built to transport long, cylindrical materials safely and neatly.

The lateral arms are spaced 7.1 in (180 mm) apart and measure 13.2 in (335 mm) long, made from 0.1 in (2.5 mm) thick steel. Each set keeps pipe stock stable and separated, improving safety and handling.

Welded fixed legs ensure the trolley’s frame remains rigid under load. For more flexible operations, HERMEQ also offers a version with demountable legs.

Standard 360° swivel castors support a maximum evenly distributed load of 1650 lb (750 kg), enabling easy movement through tight warehouse aisles or cluttered job zones. Custom caster options are available upon request—be sure to consider total weight and floor conditions when selecting.

• Max Capacity: 1650 lb
• Height: 51.2 in
• Width: 43.3 in
• Depth: 27.6 in
• Base Frame: 1.6 in x 1.6 in and 2 in x 2 in steel tube
• Finish: Blue paint standard (non-corrosion resistant); optional powder coating or galvanized

Perfect for use in construction, warehousing, MEP trades, manufacturing, and more. Not suitable for crane lifting. This trolley improves safety and efficiency where frequent pipe transport is required.

HERMEQ stocks a wide range of Scaffolding Equipment, Building Supplies, Lifting Equipment, and PPE that conform to OSHA safety standards and American construction needs.
