HERMEQ GermanyFork Mounted Articulated Extendable Jib
Product Highlights
- Angle adjustable – 0° to 45° setup
- Extending boom – Up to 151 in reach
- Multi-hook lift points – Versatile & safe
Alternative Products
SKU IA5623
Fork-mounted articulated jib with telescoping beam and 0–45° angle adjustment. Multiple hook points for awkward loads. Rated from 2,200–11,000 lb depending on model. Ideal for US construction and plant lifts.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery

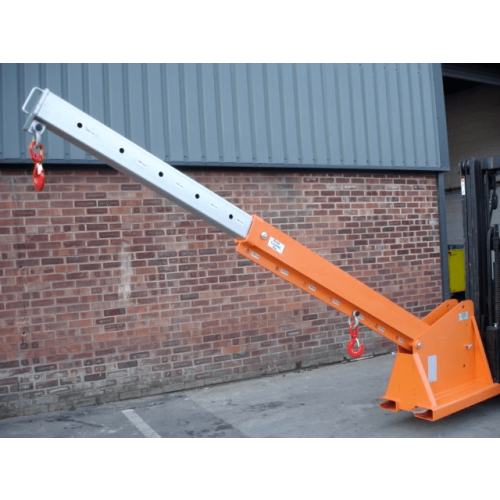

The HERMEQ Fork-Mounted Articulated Extendable Jib is built for safe and flexible lifting of long, bulky, or awkward items. With a telescoping reach and variable angle setting (0°–45° in 15° increments), it provides full control over load placement from forklifts or telehandlers across US job sites.
Key Features:
- Angle adjustable: 0°, 15°, 30°, or 45° via quick-lock pin
- Multi-hook positions: From 37.4 in to 151.6 in (950–3,850 mm) load centers
- Fork pockets: Accepts forks up to 5.9 x 2.4 in (150 x 60 mm)
- Zinc heel pins: Secures jib to forks in seconds
- Swivel hook + shackle: Included for safe lift setup
- Finish: Bright orange for visibility
Capacity Options:
- 2,200 lb (1,000 kg) – 650 lb jib weight
- 4,400 lb (2,000 kg) – 661 lb jib weight
- 6,600 lb (3,000 kg) – 683 lb jib weight
- 8,800 lb (4,000 kg) – 694 lb jib weight
- 11,000 lb (5,000 kg) – 672 lb jib weight
Perfect for lifting roof trusses, long pipework, large HVAC units, or jobsite structures where a vertical jib or crane can't reach. Adjusts quickly without tools. Meets jobsite demands for high-reach fork lifting under OSHA guidelines.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
- Load Centers: 37.4–151.6 in (950–3,850 mm)
- C of G: 33–44 in (840–1115 mm)
- Finish: Powder-coated orange
- Pin Kit: Heel pins and beam pins included
