Fork Extensions (Max Fork 100 x 50)
SKU IA1086
Quickest Available Delivery: 4 to 5 Week
Heavy-duty bolt-on fork extensions. Accepts forks up to 4 in x 2 in. Allows longer loads to be moved safely. Smooth underside minimizes product damage. Max 66% overhang.
Details

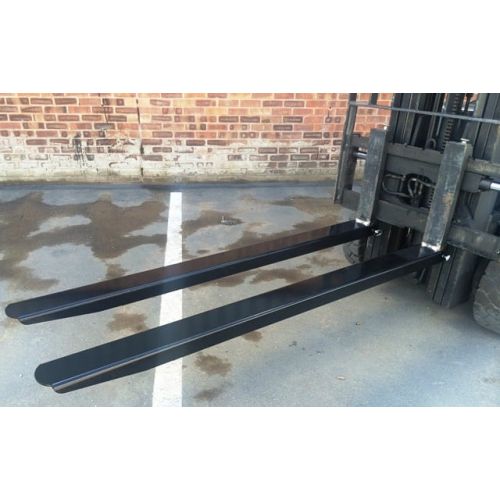

These rugged steel bolt-on forklift extensions are designed to handle long, bulky, or awkward loads that exceed the parent fork length. Compatible with forks up to 4 in wide x 2 in thick, they’re ideal for moving oversized pallets, frames, or bundled goods across US sites.
The smooth underside reduces damage to fragile loads, while the plated heel pin system locks each extension securely in place. Designed for high-reliability lifting, they comply with ANSI/ITSDF B56 safety guidelines for forklift attachments.
Using Fork Extensions:
- Adjust forklift forks to desired width
- Remove heel pins from extensions
- Drive forks fully into the extensions
- Reinsert heel pins behind fork heels and secure with lynch pins
Key Features:
- Formed single-channel steel with fully enclosed sides
- Rounded corners and smooth underside for product protection
- Plated heel pins for quick, secure fitment
- Durable powder-coated black finish
- Available in multiple lengths to suit long load handling
Inspection & Maintenance:
- Inspect weekly, focusing on welds, pin wear, and structural deformation
- Report any damage before reuse
- Treat surface rust with inhibitors and touch-up coatings as needed
HERMEQ USA offers a full range of Material Handling, Vehicle & Access Ramps, Trench Covers & Steel Road Plates built to meet US site regulations.
Need assistance?
Contact HERMEQ USA at 1-800-000-0000 or email sales@hermeq-usa.com.
See the full range of Telehandler Attachments.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Specifications
Standard Features:
- Tip thickness: 0.24 in (6 mm)
- Fully pressed profile with smooth corners
- Zinc-plated heel pins for safety
- Powder-coated black finish
| Length (in) | Weight (lb) | Center of Gravity (in) |
|---|---|---|
| 48 | 37.5 | 24.0 |
| 54 | 41.9 | 27.0 |
| 60 | 46.3 | 30.0 |
| 63 | 50.7 | 31.5 |
| 65 | 52.9 | 32.5 |
| 72 | 57.3 | 36.0 |
| 78 | 61.7 | 39.0 |
| 84 | 66.1 | 42.0 |
| 94 | 74.9 | 46.9 |
