Edge Protection Barrier

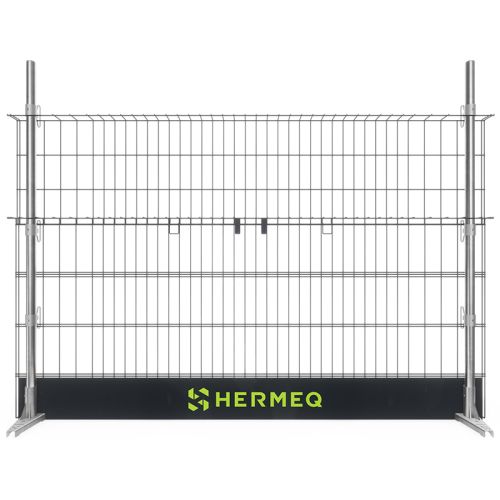

main product photo

Product Highlights

  • Robust mesh panel system - Galvanized steel with 0.24 in wires in a 3-2-2 formation for maximum durability.
  • Modular compatibility - Standard Z-design fits HERMEQ and similar systems with full interchangeability.
  • Custom powder-coating - Available in stock colors or customized to suit corporate branding.

SKU WO737671

HERMEQ’s mesh edge protection barrier offers rapid, tool-free installation for temporary edge protection on construction sites. Made with galvanized steel and integrated toe boards, it delivers strength, durability, and full compliance. Compatible with HERMEQ posts and sliders, it forms a safe, modular perimeter system.

As low as From $87.90
In stock

Quickest Available Delivery: Quickest Available Delivery: Up To 2 Working Days Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.


Details
Additional Details
FAQs
Spec Sheets
HERMEQ’s edge protection barrier is a core component of our temporary edge protection system, providing quick-to-deploy perimeter safety where temporary fall protection is critical. Manufactured from galvanized mesh and integrated toe boards, this barrier system meets all US safety standards and is built to handle the demands of modern construction sites. Designed to be installed around the perimeter of floor slabs, lift shafts, stairwells, and scaffold-free platforms, it helps mitigate fall hazards and prevents debris from exiting the working area. The standard Z-profile design ensures full compatibility with HERMEQ edge protection posts and sliders, while also integrating with other similar systems.
  • 3-2-2 mesh pattern - 0.24 in galvanized steel wires positioned for maximum panel integrity.
  • Fast, modular installation - Slots into HERMEQ edge protection posts using retaining slide clips.
  • Customizable finish - Choose from HERMEQ stock colors or request corporate branding and colors.
  • Meets safety standards - ANSI/EN 13374 Class A compliant for edge and fall protection on active sites.
  • Reusable and tough - Built to withstand repeated use in high-traffic site environments.
Each panel measures 102 in long and 45 in high, with an overlapping configuration for seamless perimeter coverage. For taller protection needs, the panel pairs with our enhancement barrier to extend system height to 67 in — just pair with 75 in HERMEQ posts for full compliance. This barrier provides reliable temporary edge protection across multi-story builds, rebar slab work, or large footprint developments where worker safety is paramount. The built-in kickplate prevents small debris from escaping, while the mesh structure ensures high-visibility site control. It's ideal for clients looking to safeguard personnel while maintaining flexibility in their protection layout.

HERMEQ stocks a wide range of equipment for Working at Height including Edge Protection Systems, Fall Arrest Systems, and Harnesses & Lanyards conforming to all required US safety specifications and regulations.

Need any help? Contact HERMEQ Today.

Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.

The HERMEQ edge protection barrier system is widely used across a range of construction sectors for both short-term and multi-phase developments.

Popular Use Cases:

  • Floor slab perimeters on multi-story residential and commercial buildings
  • Temporary fall protection around lift shafts, staircases, and M&E voids
  • Edge protection on concrete platforms and exposed upper-level edges
  • Scaffold-free installations on steelwork or concrete slab builds
  • Barrier systems on roof access projects or plant room perimeters
Additional height can be added using HERMEQ’s enhancement mesh option — especially valuable on sites requiring 67 in temporary fall protection for regulations or specific risk mitigation strategies. Finish and colors can be tailored to match your project branding, with powder-coating completed in-house at our facilities. Highly visible, durable, and standardized, this system is a favorite among site managers needing dependable edge protection without delay.

What are the panel dimensions of this edge protection barrier?
Each panel is 102 in long and 45 in high, with overlapping capability for continuous temporary edge protection on site.

Is this barrier compatible with other systems?
Yes, the Z-profile design ensures compatibility with HERMEQ posts and most similar systems used across the construction industry.

Can I add extra height for higher fall protection?
Absolutely. Pair this barrier with our enhancement mesh to extend the total height to 67 in. Use 75 in HERMEQ posts to support the extended barrier height.

Can I use these on scaffold-free sites?
Yes. These barriers can be mounted onto concrete slabs or steelwork using adjustable fixings and bases for non-scaffold environments.

Are custom colors available?
Yes. We powder coat in-house and can match your corporate branding. Please note lead times may vary for bespoke finishes.
