Crane Pallet Forks - Self-Balancing

Name: Crane Pallet Forks - Self-Balancing
SKU: IA3012
Price: 2493 USD
Availability: InStock

In stock

SKU IA3012

$2,493.00

Quickest Available Delivery: 4 to 5 Week

Qty

Enquire - Ask Question

Request a Quote

Optional Extras

Safety Net

Safety Restraint Net (4ft 11.06" x 4ft 11.06" x 5ft 2.99") + $368.06

Qty:

Fork Length

Long Forks - 3ft 11.24" + $2,700.75

Qty:

Crane slung automatic pallet forks, available with 1000mm & 1200mm forks. Crane pallet forks are most commonly used on construction sites where overhead cranes being used to move materials around site. Crane liftable self-balancing forks with safety nets supply a safe and efficient way of transporting building and construction material around site.

Details

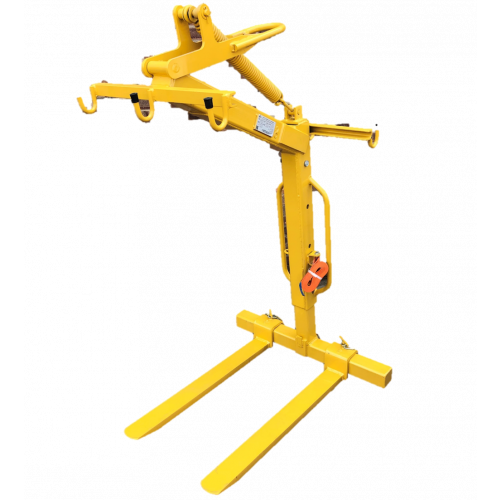

The Automatic Pallet Forks effectively convert an overhead crane into an effective pallet mover. There are many applications where fork trucks cannot be operated due to a lack of floor space for example high rise developments. Our crane forks are equipped with adjustable forks, height adjustment and an automatic balancing sprung head along with pre-fitted restraint net frame (net supplied separately).

Fork Length (mm)	Fork Cross Section (mm)	Fork Opening Range (mm)	Overall Height (mm)	Weight (kg)	Load Capacity (kg)
1000	100 x 35	300 - 1000	1800 - 2500	170	2000
1200	100 x 35	300 - 1000	1800 - 2500	190	2000

Standard Features

Spring loaded self-balancing head.
Safety Net Frame
Adjustable Height – Clear Height 1200-1900mm
Adjustable Fork Widths
Convenient Hand Holds
Painted bright yellow for safety

Operation

Operate overhead crane / HIAB into position directly over the crane forks.
Place the crane/HIAB hook onto the lifting eye of the attachment.
Slacken the thumbscrews to position the forks at the widest possible distance apart to suit the pallet.
Retighten thumb screws onto rail ensuring that they are adequately tightened and secure.
With the pallet forks slightly raised, manually re-position the Pallet Forks to enter the pallet with the handles provided on the rear of the frame.
Operate overhead crane / HIAB to enter the forks fully into the pallet.
Once fully inserted into the load, place the safety strap around the load & secure.
Lift the pallet clear of the ground and slide restraint net underneath. Attach to the six net hoops on the frame. Always use a restraint net when lifting overhead.
When positioned correctly & secured, the load is ready for movement.
