HERMEQ GermanyWalkthrough Crowd Barrier - Basic - Red
Product Highlights
- Cost-effective design – Affordable, durable option for pedestrian access points.
- Red powder-coated finish – Provides visibility and corrosion resistance.
- Round-top construction – Fewer weak points for increased service life.
SKU WB0001

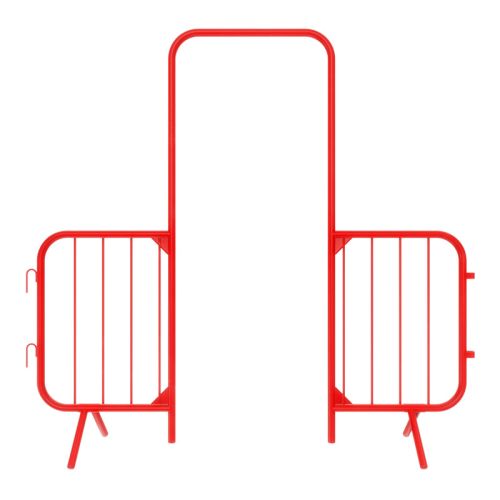

Walkthrough crowd barriers are the simplest and most cost-effective way of clearly marking access points to allow for safe, organized pedestrian control. They feature an open hoop shape built into the center of the barrier, letting pedestrians walk straight through.
Powder-coated red as standard, they come with hooks and eyes for easy connection to standard crowd control barriers.
Walkthrough barriers have grown in popularity as they provide strong pedestrian control while designating specific access points. They address key safety concerns by giving clearly defined entry and exit routes. Our walkthrough barriers are fully compatible with both fixed leg pedestrian barriers and loose leg pedestrian barriers.
The basic walkthrough barrier is our most cost-effective option. Supplied powder-coated red as standard (other colors available on request), the finish helps it stand out while protecting against corrosion. Each barrier has hooks on one side and eyes on the other, making it simple to connect directly to other walkthroughs or standard barriers. Four corner plates reinforce the structure, extending lifespan under repeated use.
This round-top design reduces the number of joins compared to square tops, eliminating weak points and boosting longevity. While we want to see you again, we’d rather it not be because of premature failures — durability comes first.
We also offer an advanced walkthrough barrier with a spring-loaded gate and slam plate for extra control.
Pedestrian Safety on Construction Sites
Movement of vehicles, equipment and pedestrians poses risks on busy projects. Routes must be organized to allow safe circulation. Barriers like this make routes clearly marked and better controlled, supporting OSHA-compliant site planning.
Simple but effective controls include:
- Separating pedestrians from vehicle routes with barriers
- Providing wide enough routes for expected use
- Positioning crossings for easy access to work zones
- Ensuring visibility at crossing points
- Clearly marking all routes with signage
HERMEQ stocks a wide range of Crowd Control Barriers, Traffic Management Equipment, Water Filled Barriers & Road Signs conforming to all required U.S. safety specifications and regulations.
Need help? Contact HERMEQ Today.
Call us at +1-800-555-1234, email sales@hermeq-usa.com or use our live chat (8:00am – 5:00pm EST).
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Walkthrough barriers are a staple on construction sites, public events and traffic control zones. Their hoop design creates a safe crossing point while integrating seamlessly with standard barrier systems.
Applications:
- Construction site pedestrian crossings
- Event crowd control and festival access
- Public walkways near vehicle routes
- Temporary roadwork detours
These units are built for long-term durability and repeated deployment, making them a reliable choice for contractors, municipalities and event operators.
Height: 6.5ft
Width: 7.5ft (with 39in gap for pedestrian crossing)
Weight: 48lb
Finish: Powder Coated Red
Tubular Frame: 1.5in dia / 0.05in gauge circular hollow section
Tube Infills: 0.5in dia circular hollow section
Hook-and-eye system for connecting walkthrough barriers directly to fixed and loose leg crowd barriers.
Split offset leg system adds stability and makes barriers easy to stack.
Top tube punched; 15 infill bars spaced at 5.1in intervals, slotted in and welded to the base frame.
Custom colors available on request.
