HERMEQ GermanyTraffic Height Restriction Kits
Product Highlights
- 24 ft max height – Telescopic poles reach full clearance zones
- Non-conductive fiberglass – Safe near electric overheads
- One-person setup – Lightweight, fast deployment
Alternative Products
SKU PK396315-3

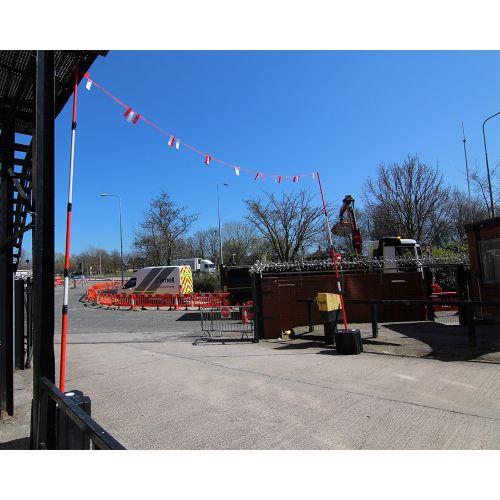

HERMEQ’s overhead height restriction kit controls vehicle clearance at construction zones, bridges, and utility sites. U.S.-adapted version reaches up to 24 ft (7.3 m) with two telescopic fiberglass poles and heavy-duty water bases. High-visibility red/white bunting. Fast one-person setup. Non-conductive. Wind tested.
This HERMEQ traffic height restriction kit offers temporary clearance control in American job sites and utility work areas. Designed for fast deployment, the system includes two telescopic fiberglass poles (up to 24 ft), a pair of fillable bases (264 lb when filled), and red/white warning bunting. Prevents accidental contact with overhead structures like cables, bridges, gantries, or pipelines.
Fully wind-tested and HSE GS6 equivalent, the system enables safe operation in high-traffic environments. The poles are non-conductive, allowing use near live electric lines. Ideal for DOT contractors, utility crews, and construction access points.
- Max height: 24 ft (7.3 m)
- Poles: Telescopic, fiberglass, non-conductive
- Base: 264 lb (120 kg) when water-filled
- Visibility: Red/white warning bunting across span
- Setup: One-person quick-clamp installation
Great for temporary vehicle routes, crane zones, rail corridors, and mobile worksites. Lighter and faster than fixed-frame aluminum or steel restrictors. Can be reused across multiple locations with minimal reconfiguration.
Pairs with HERMEQ Road Barriers, Entrance Barriers, and Traffic Safety Gear for full site setup.
Need any help? Contact HERMEQ Today.
Contact our team via email sales@hermeq-usa.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
Used across the U.S. by traffic contractors, telecom providers, and utility firms for temporary access height control:
- Road works near bridges or overhead wires
- Railway maintenance zones
- Construction crane routes
- Warehouse delivery gates
Replaces fixed-frame structures with a portable, re-deployable setup that’s fast to move and proven in wind conditions up to 60 mph.
Collapsed Pole Length: 67.7 in (1720 mm)
Extended Pole Height: 24 ft (7.3 m)
Pole Material: Non-conductive fiberglass
Base Weight (filled): 264 lb (120 kg)
Base Weight (unfilled): 44 lb (20 kg)
Install Method: Manual, one person
What is the max height?
24 ft (7.3 m) – suitable for large construction access zones and road sites.
Can one person install it?
Yes – lightweight design with quick-lock clamps for solo setup.
Is it safe near electricity?
Yes – the fiberglass poles are non-conductive.
Is it compliant in the U.S.?
Yes – adapted to U.S. construction and DOT safety expectations based on HSE GS6 standards.
